HOW TO MAKE "Mark IV"

1. Cut the parts out of the paper and glue them together along the 'FIGURE CONSTRUCTION OF "Mark IV"'. To make the paperplane beautiful, be conscious about the cutting lines and the glue reference ones. "The ballasts (for the next day)" should be glued if it doesn't fly well at the next day or later. Glue drying may let the paperplane imbalanced sometimes.

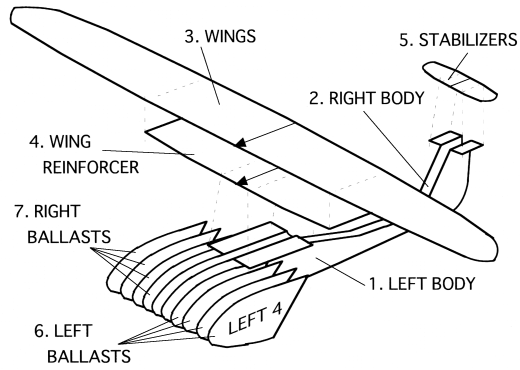

FIGURE CONSTRUCTION

Figure Construction



FIGURE FRONT VIEW

Figure Front View



FIGURE REAR VIEW

Figure Rear View



2. When the parts are fixed enough, find improper twists, bends, and waving on its body, wings stabilizers, and fin, and fix them straight and flat.

3. Tune up the wings and stabilizers according to the FIGURE FRONT VIEW and the FIGURE REAR VIEW.

4. Have good flights!



HOW TO FLY "Mark IV"

Throw "Mark IV" softly avoiding its attitude declared,and your hand should move as if it is on a straight rail.

If it doesn't fly straightly, check improper twists, bends, and waving on its body, wings, stabilizers, and fin, then fix them straight and flat again.

In case, your checks and fixes do not work, your "Mark IV" needs one or more ways of following special settings depending on situations.

Don't worry! It's easy.



SETTINGS OF "Mark IV"

If your "Mark IV" DECLINES AND MAKES A BIG TURN,
Check: Your throwing hand may decline when you release the papreplane.
Remedy: Train yourself to release "Mark IV" horizontally.
If your "Mark IV" ROLLS UPSIDE DOWN QUICKLY AND FALLS,
Check & remedy: See and retune up its stabilizers' and wings' settings with the FIGURE FRONT VIEW and the FIGURE REAR VIEW.
If your "Mark IV" PITCHES (flies as if a surfer goes against wave),
Setting3
Remedy: Add one or more ballasts because your "Mark IV"'s nose is too light. You can make additional ballasts cutting out of the rest of the paper you have cut "Mark IV"'s parts out, or you can pinch your "Mark IV"'s nose with clips as the picture above as ballasts.
Or
Setting4
Remedy 2: Bend the tail edges of stabilizers down a little as the figure above.
If your "Mark V" simply BOWS, GOES DOWN, AND HITS THE GROUND,
Setting5
Remedy: Bend the tail edges of stabilizers up a little as the figure above.
